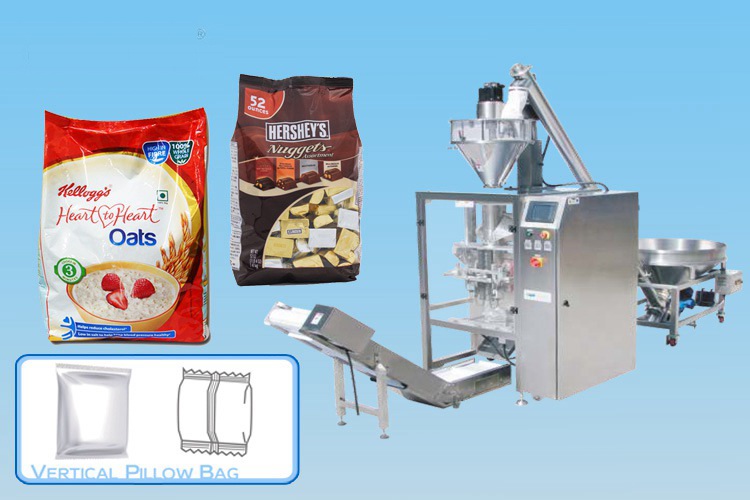

Big Volume Pillow Pack Vertical Packing Machine
Add Time：2022-02-17 09:51:52
PM-720/PM-620/PM-520/PM-420
Application:
Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical and other industries.
Standard Feature:
The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
Servo-motor driven, twin belt film pulling system.
High sensitive fiber optic photo sensor can automatically trace color mark accurately.
PLC control system combined with touch screen, can easily set and change the packing parameters.
Daily production output and self-diagnostic machine error can be viewed directly from the screen.
PID temperature controller monitors heat sealing temperature within ±1°C.
Selected electrical and pneumatic components from reliable international manufacturer.
With CE Certificate comply to CE standard.
Optional Parts for Main Machine
Gusset Pouch forming Device
Date Code Printer (ribbon hot printer or thermos transfer printer)
Sachet header Hole Puncher
Fix Number Cut
Stainless Steel Machine Out Case
Application:
Automatic packaging of liquid, powder and granule in formed pouch for the food, pharmaceutical, chemical and other industries.
Standard Feature:
The machine can automatically complete the products conveying, measuring, and feeding, filling and bag forming, date code printing, bag sealing and cutting.
Servo-motor driven, twin belt film pulling system.
High sensitive fiber optic photo sensor can automatically trace color mark accurately.
PLC control system combined with touch screen, can easily set and change the packing parameters.
Daily production output and self-diagnostic machine error can be viewed directly from the screen.
PID temperature controller monitors heat sealing temperature within ±1°C.
Selected electrical and pneumatic components from reliable international manufacturer.
With CE Certificate comply to CE standard.
Optional Parts for Main Machine
Gusset Pouch forming Device
Date Code Printer (ribbon hot printer or thermos transfer printer)
Sachet header Hole Puncher
Fix Number Cut
Stainless Steel Machine Out Case
| Modal No. | PM-720 | PM-620 | PM-520 | PM-420 |
| Max. Measuring Range (ml) | 4000 | 3000 | 2000 | 1000 |
| Bag Length (mm) | 200-500 | 120-450 | 80-390 | 80-300 |
| Bag Width (mm) | 150-350 | 110-300 | 90-250 | 80-200 |
| Film WIdth(mm) | 320-720 | 240-620 | 200-520 | 160-420 |
| Speed (Bag/min) | 10-35 | 10-45 | 15-50 | 15-60 |
| Power | 220V/1ph, 3.5Kw | 220V/1ph, 3.2Kw | 220V/1ph, 2.5Kw |
220V/1ph, 2.5Kw |
